Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph

US $1,000.00

/Piece

This is a standard product, you can order directly

Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph

Price

US  $1,000.00 /Piece

Quantity
- +

Save

Inquiry Now Order Now
Payment Methods

China
Follow
Supplier
Company Profile：
No Information
Main products：
No Information
SEIS TECH INC. Enter the Store

Recommended products

More

  • Assorted Geohone Cases for Land, Desert, Marsh and Transition Zone

    US  $ 100.00

  • Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph

    US  $ 1000.00

  • Muller Clip for Resistivity Electrode Jumper Connection and Seismic Geophone Connection

    US  $ 10.00

  • 40Hz Geophone for Shallow Refraction, Surface Waves and Masw for Pasi Gea 24 Seismograph

    US  $ 200.00

  • Ordinary Split Plate Clip Take-out for Pasi Seismic Cables and Ert Cables

    US  $ 10.00

  • Hti 96 Equivalent Min Hydrophone for Ocean Bottom Cables and Nodal Systems

    US  $ 1.00

  • 20dx Geophone Sensor for Coal Mine Prospecting and Industrial Vibration Monitoring

    US  $ 100.00

  • 60Hz Land Case Velocity Geophone for P Wave and S Wave

    US  $ 200.00

Commodity Details
  • Model NO. trigger geophone
  • Sensitivity 200V/M/S
  • Damping 0.7
  • Geophone Direction Vertical, Horizontal or 3c
  • Connector for Land Case Geophone Split Spring Clip, Mueller Clip, Kooter or Kck
  • Lead-in Cable for Land Case Geophone 4.6mm to 7.8mm Od Optional
  • Transport Package Standard Export Carton
  • Specification 2 Hz geophone
  • Trademark SEIS TECH
  • Origin China
  • HS Code 9015800090
  • Production Capacity 5, 000.00/Year

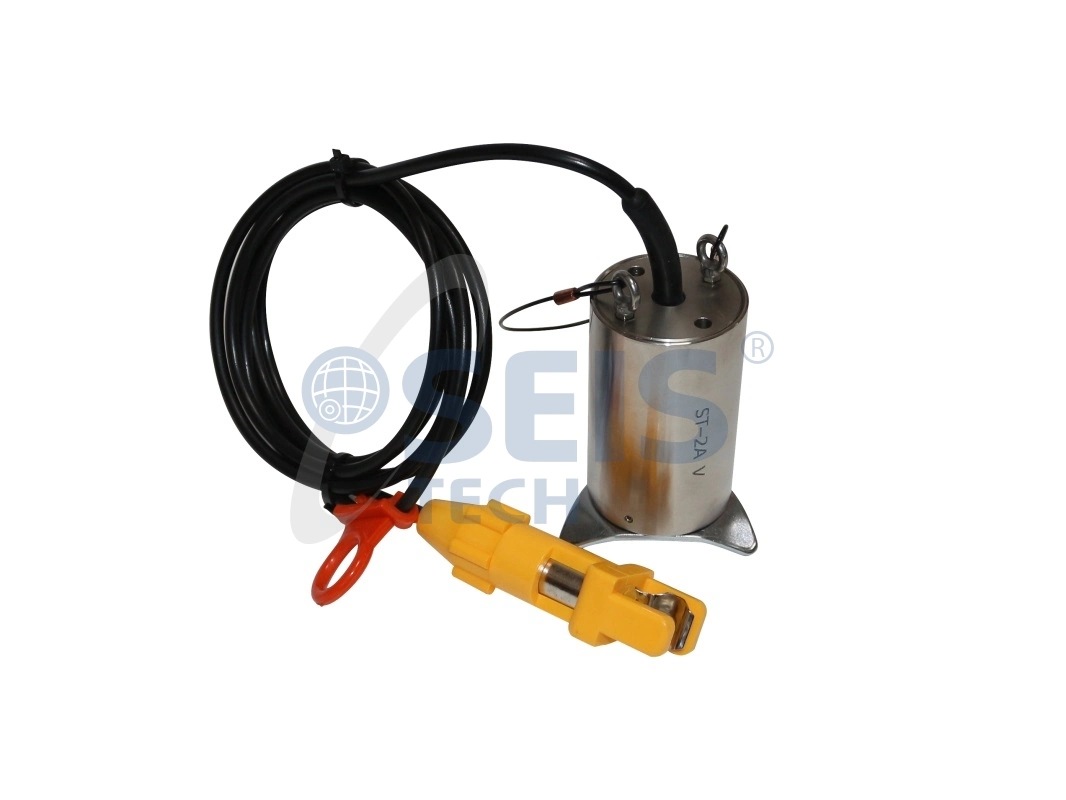

Starter geophone 2Hz for PASI Trigger for GEA 24 seismograph is available with a Souriau 4-pin cable connector equipped.

-High signal-to-noise ratio and wide dynamic range up to 1Hz to 1000Hz.

-Low natural frequency of 2Hz.

-Ultra-high sensitivity of 260.0V/m/s.

-Low distortion≤0.3%.

-Single point acquisition, light weight and portable deployment.

-Assorted geopone bases are interchargable for suiting with soft earth and hard surfaces.

-1-year limited warranty on basic elements exclusive of high voltage, lightening or physical abuse.


Data Sheet for Starter Geophone 2Hz for PASI Trigger

TypeST-2A
Natural frequency (Hz)2±15%
DC Resistance (ohm)6400 ±10%
Sensitivity (V/m/s)260±15%
Open Circuit Damping0.7±15%
Distortion (%)<=0.3
Allowable Tilt0ºC
Element Diameter (mm)38
Element Height (mm)47
Element Weight (g)Vertical:264.0g / Horizontal 273.0g
Operating Temperature(ºC)-40ºC to + 100ºC
Working DirectionVertical / Horizontal / Three-component

-  All parameters specified herein are rated at a temperature of 20ºC±2ºC

-   1-Year Limited Warranty on basic elements exclusive of high voltage, lightening or physical abuse.

- Other type of geophones are also available: SM-4 Equivalent, SM-6 Equivalent, SM-24 Equivalent, SG10 Equivalent, GS-20DX Equivalent, GS-32CT Equivalent, GS ONE Equivalent, 1Hz, 2Hz, 2.5Hz, 3Hz, 4Hz, 4.5Hz, 5Hz,8Hz, 10Hz, 14Hz, 15Hz, 28Hz, 30Hz, 38Hz, 40Hz, 60Hz,80Hz and 100Hz.

Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph


Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph
Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph

Starter geophone 2Hz for PASI Trigger for GEA 24 seismograph is available with a Souriau 4-pin cable connector equipped.

-High signal-to-noise ratio and wide dynamic range up to 1Hz to 1000Hz.

-Low natural frequency of 2Hz.

-Ultra-high sensitivity of 260.0V/m/s.

-Low distortion≤0.3%.

-Single point acquisition, light weight and portable deployment.

-Assorted geopone bases are interchargable for suiting with soft earth and hard surfaces.

-1-year limited warranty on basic elements exclusive of high voltage, lightening or physical abuse.


Data Sheet for Starter Geophone 2Hz for PASI Trigger

TypeST-2A
Natural frequency (Hz)2±15%
DC Resistance (ohm)6400 ±10%
Sensitivity (V/m/s)260±15%
Open Circuit Damping0.7±15%
Distortion (%)<=0.3
Allowable Tilt0ºC
Element Diameter (mm)38
Element Height (mm)47
Element Weight (g)Vertical:264.0g / Horizontal 273.0g
Operating Temperature(ºC)-40ºC to + 100ºC
Working DirectionVertical / Horizontal / Three-component

-  All parameters specified herein are rated at a temperature of 20ºC±2ºC

-   1-Year Limited Warranty on basic elements exclusive of high voltage, lightening or physical abuse.

- Other type of geophones are also available: SM-4 Equivalent, SM-6 Equivalent, SM-24 Equivalent, SG10 Equivalent, GS-20DX Equivalent, GS-32CT Equivalent, GS ONE Equivalent, 1Hz, 2Hz, 2.5Hz, 3Hz, 4Hz, 4.5Hz, 5Hz,8Hz, 10Hz, 14Hz, 15Hz, 28Hz, 30Hz, 38Hz, 40Hz, 60Hz,80Hz and 100Hz.

Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph


Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph
Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph
Commodity Details

Starter geophone 2Hz for PASI Trigger for GEA 24 seismograph is available with a Souriau 4-pin cable connector equipped.

-High signal-to-noise ratio and wide dynamic range up to 1Hz to 1000Hz.

-Low natural frequency of 2Hz.

-Ultra-high sensitivity of 260.0V/m/s.

-Low distortion≤0.3%.

-Single point acquisition, light weight and portable deployment.

-Assorted geopone bases are interchargable for suiting with soft earth and hard surfaces.

-1-year limited warranty on basic elements exclusive of high voltage, lightening or physical abuse.


Data Sheet for Starter Geophone 2Hz for PASI Trigger

TypeST-2A
Natural frequency (Hz)2±15%
DC Resistance (ohm)6400 ±10%
Sensitivity (V/m/s)260±15%
Open Circuit Damping0.7±15%
Distortion (%)<=0.3
Allowable Tilt0ºC
Element Diameter (mm)38
Element Height (mm)47
Element Weight (g)Vertical:264.0g / Horizontal 273.0g
Operating Temperature(ºC)-40ºC to + 100ºC
Working DirectionVertical / Horizontal / Three-component

-  All parameters specified herein are rated at a temperature of 20ºC±2ºC

-   1-Year Limited Warranty on basic elements exclusive of high voltage, lightening or physical abuse.

- Other type of geophones are also available: SM-4 Equivalent, SM-6 Equivalent, SM-24 Equivalent, SG10 Equivalent, GS-20DX Equivalent, GS-32CT Equivalent, GS ONE Equivalent, 1Hz, 2Hz, 2.5Hz, 3Hz, 4Hz, 4.5Hz, 5Hz,8Hz, 10Hz, 14Hz, 15Hz, 28Hz, 30Hz, 38Hz, 40Hz, 60Hz,80Hz and 100Hz.

Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph


Starter Geophone 2Hz for Pasi Trigger for Gea 24 SeismographStarter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph
Starter Geophone 2Hz for Pasi Trigger for Gea 24 Seismograph
