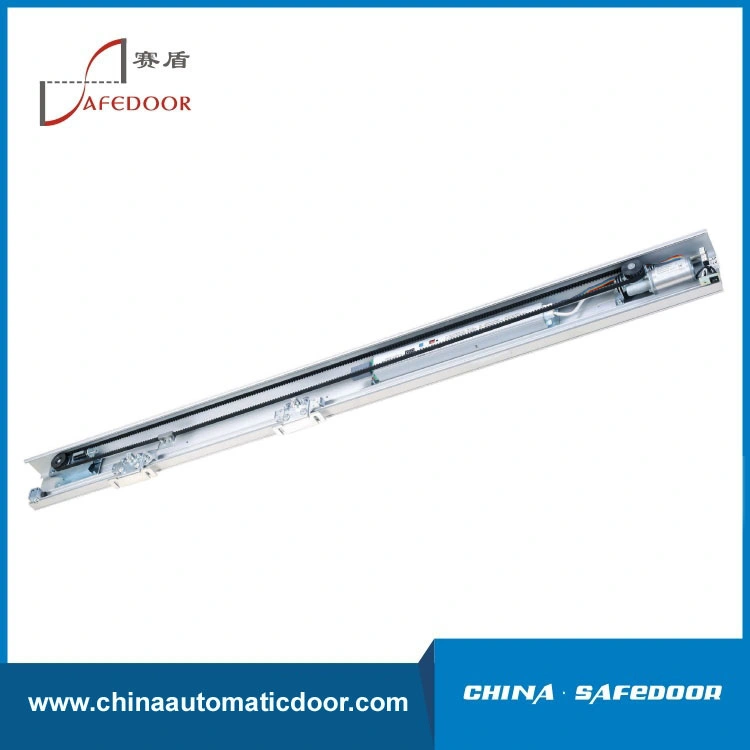

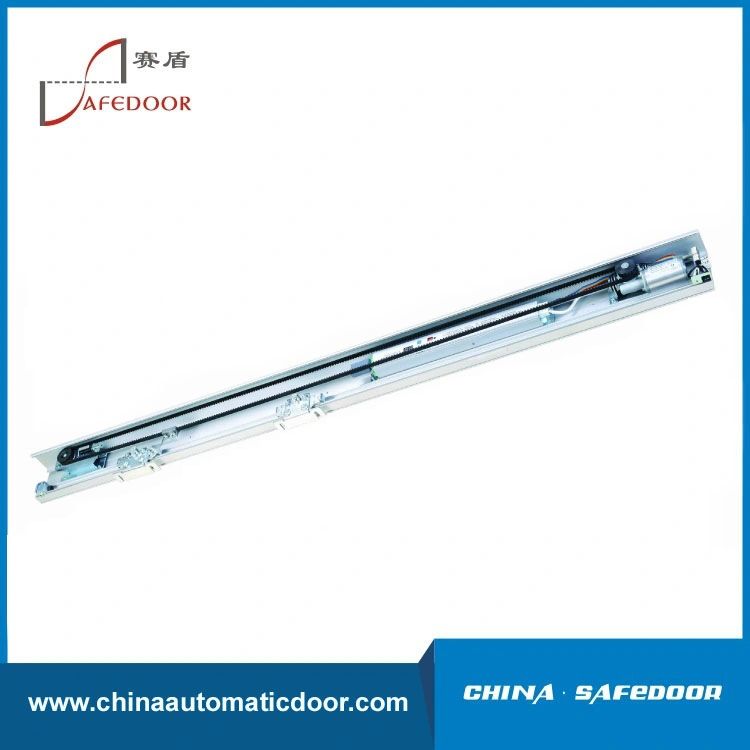

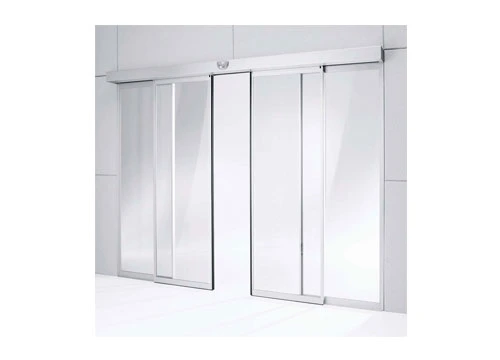

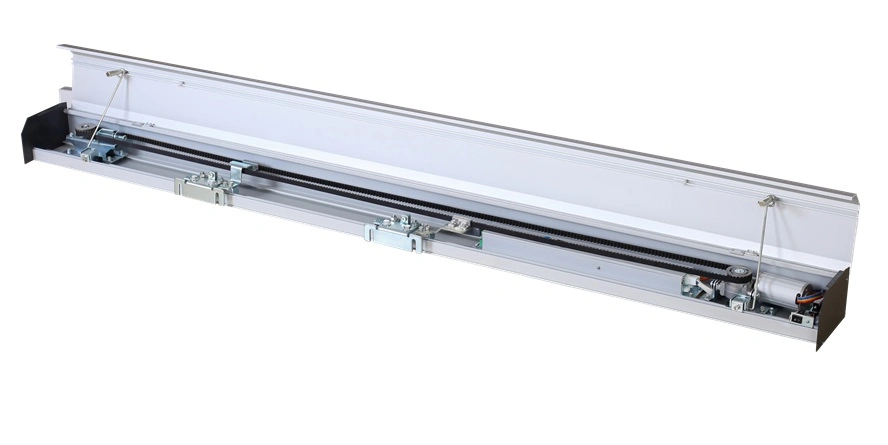

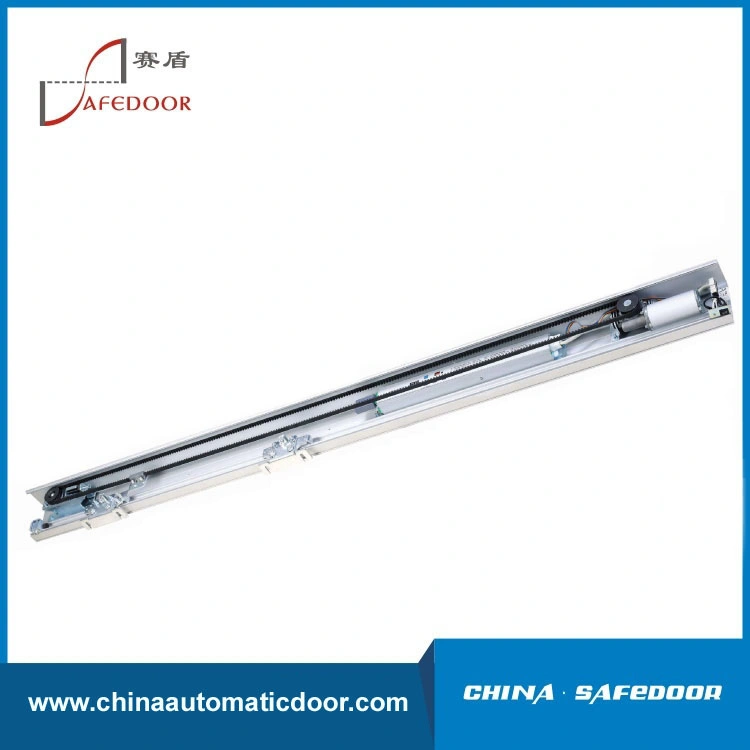

The Art.1071.101 is designed with superior microprocessor technology, precisely controlling the door wing's speed and travel distance. It creates easy hands-free access and is convenient for you to install and debug it. The safety factor of these sliding door operator is high and five status are available by remote control or 5 position key switches.

Advantages:

1- 100% safety: Reverse to open when touching people slightly.
2- Fire alarm special terminal: When fire alarm signal happens, the door open permanently even under lock status.

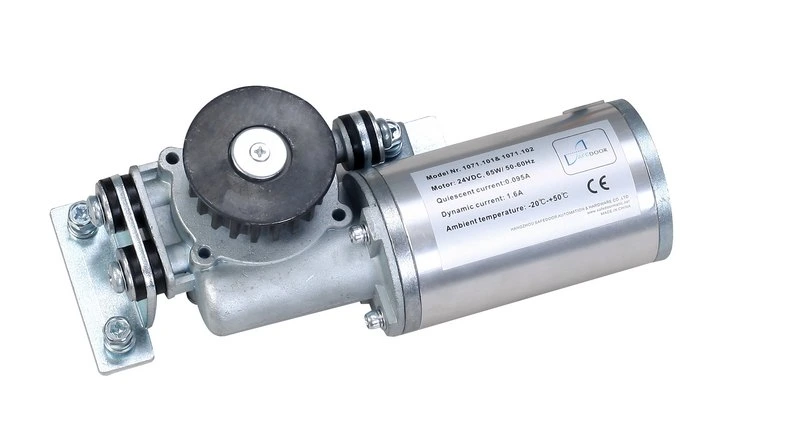

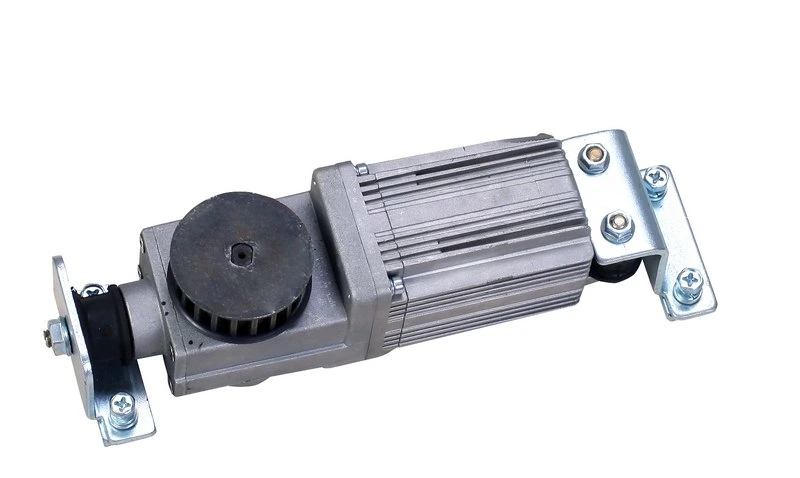

3- Very low noise when motor works
4- Pretty operation curve: no need to bump the door stopper to stop, no shaking for glass door.
5- Battery maintaining time 2.5 hours, longer life time cooperated with battery management module (optional)
Characteristics:
1. Superior microprocessor technology precisely controls the door wing's running speed, travel distance, and automatically suit different door width and its speed. The performance features the good operation curve, extremely reduced the running noise.
2. Motor locking function: If the controller detects the illegal door opening attempt, the motor will enhance the force to make the door stay closed.
3. Lesser parameters setting, no need to set opening/closing buffer /slowdown distance, buffering speed etc, makes the debugging easier, leaving your hands free.

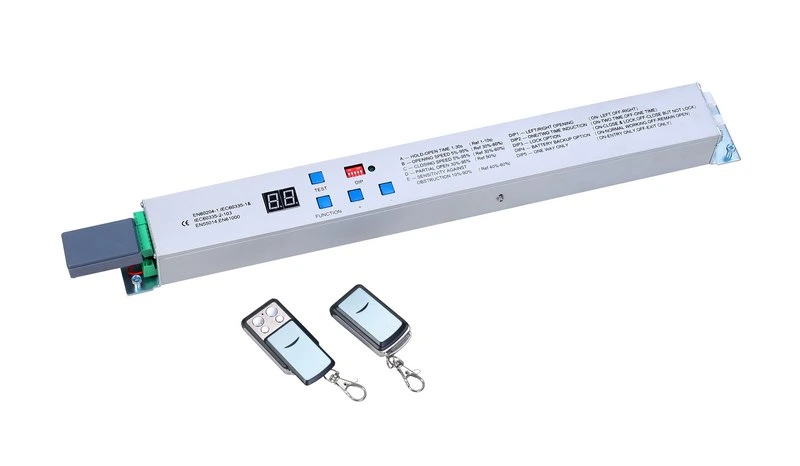

4. Digital display screen, button debugging, convenient for setting the right parameter
5. Longer lifetime, more than 2 million failure-free operation tests

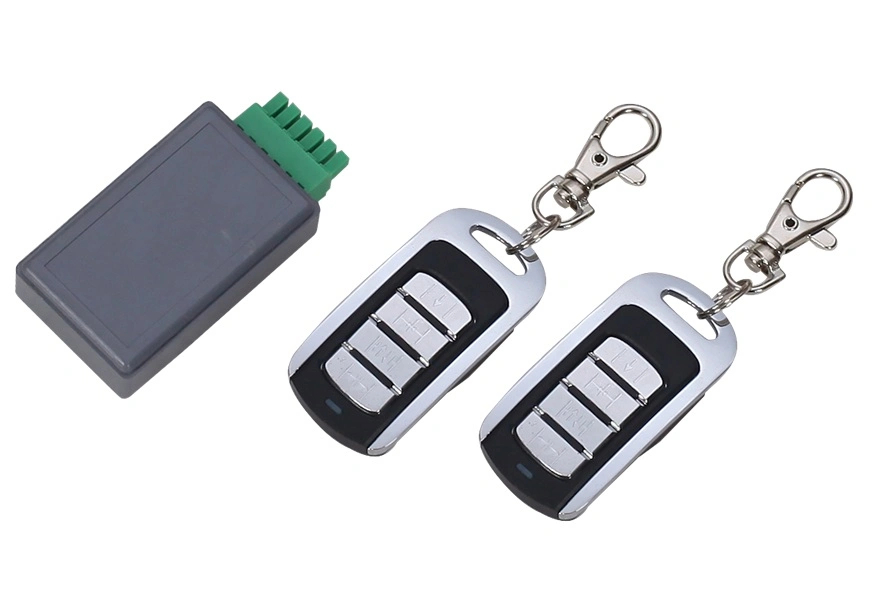

6. Permanent open/ partial open/ lock/ exit or entry only/ auto 5 operation functions carried out by remote transmitter or 5 position key switch


Active safety function:
l        Photocell (light barrier) monitor the passage status. If the pedestrian blocked the photocell, the door will remain opening status until the passage way is clear
l        Photocell N.C. contact: if the photocell was in disorder, the door wing will remain opening status, which is used to reminding user to change the malfunctioning photocell to avoid unnecessary injury.
l        Fire- alarm signal priority: even user set the door into "LOCK", and other opening signals was shielded, if fire-alarm signal activated, the door will be transferred into "PERMANENT OPEN" supplying with fire passage

Passive safety function:
Excellent reverse against crush safety function: The door wings will reverse against any obstructions sensitively, and the crush sensitivity can be adjusted. This will specifically protect the elder and children  from injury who may stay out of the parallel beams of photocell.

Backup battery and management module(optional):
2 units acid-lead backup battery 1.3AH, 12V, equipped with special management module. The module manage the charging and discharging, and prevent them from over-charge and over-discharge to extend battery lifetimes.

Standard accessories:
SL101.03A
SL101.03C
SL101.04D
RT15B

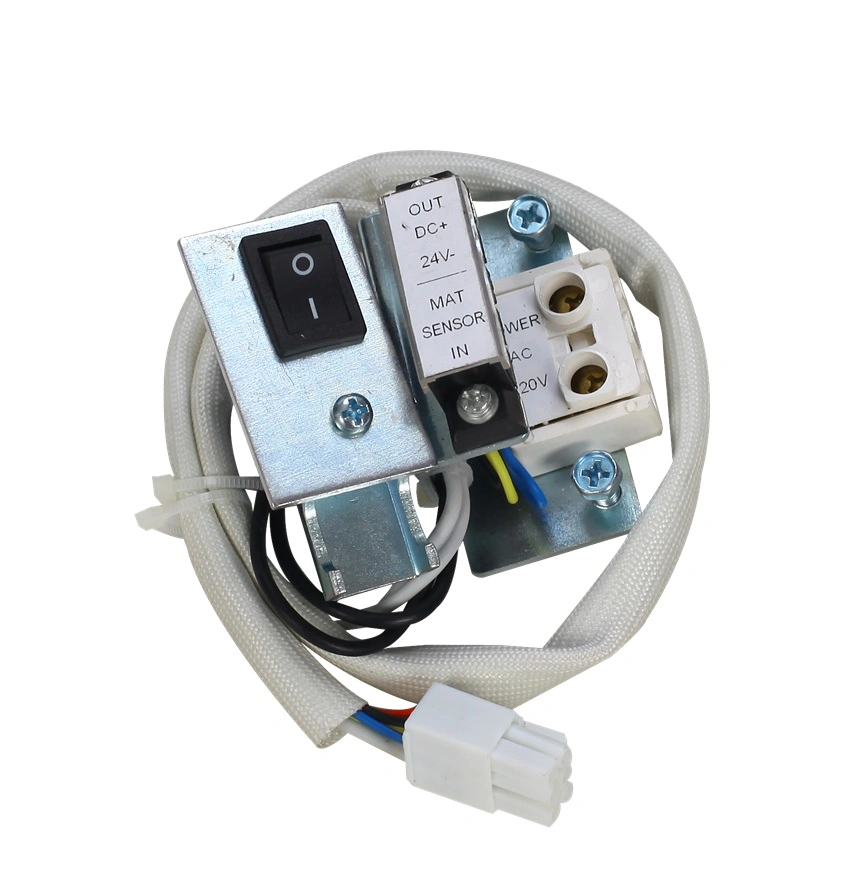

Power switch SLPW001

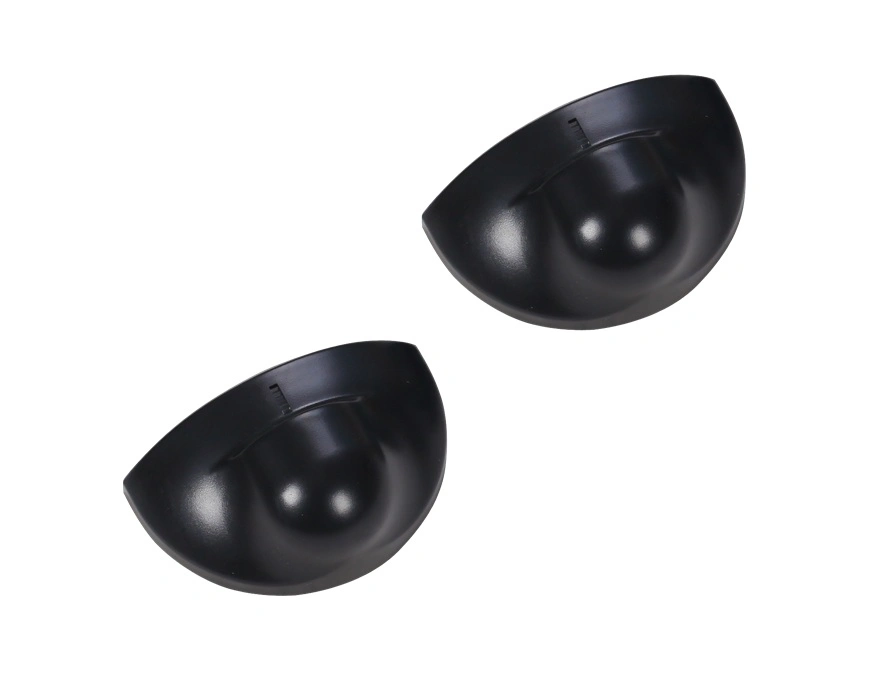

Radar 2053.204G

Optional accessories:

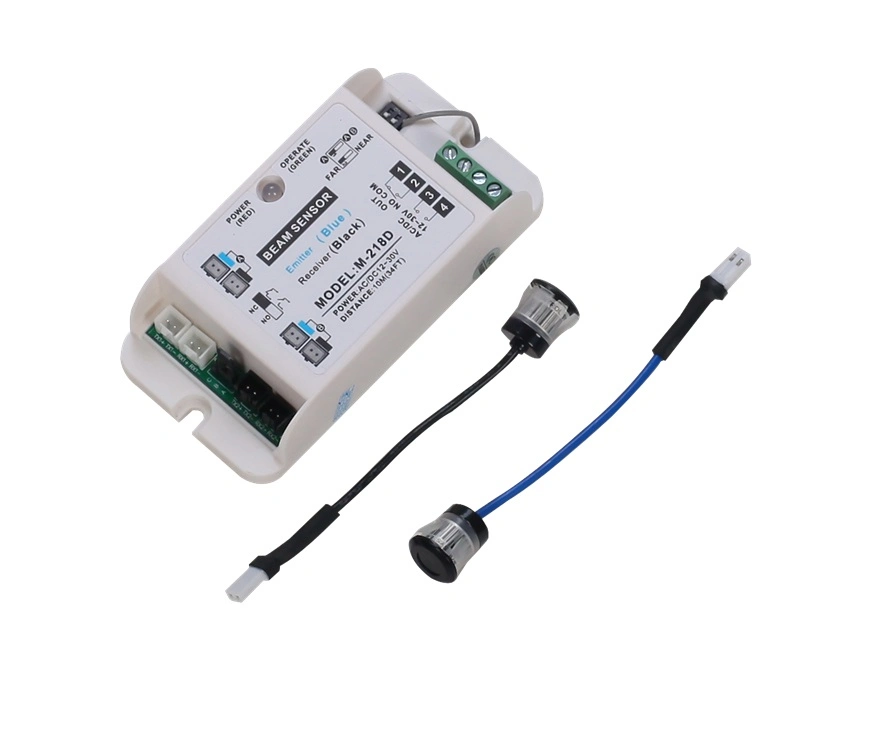

Safety beam sensor 2063.108
