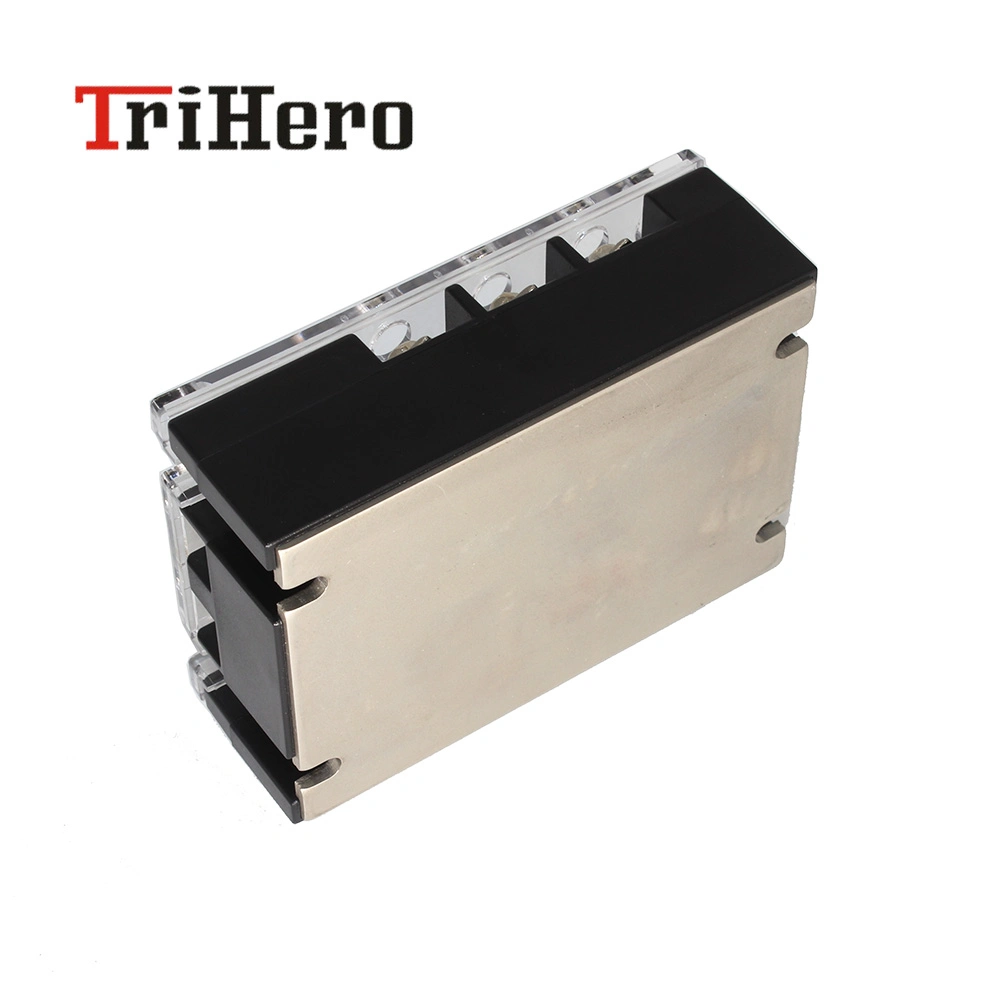

SSR3-25AA AC to AC 3 Phase SSR Relay

US $12.50

/Piece

This is a standard product, you can order directly

SSR3-25AA AC to AC 3 Phase SSR Relay

Price

US  $12.50 /Piece

Quantity
- +

Save

Inquiry Now Order Now
Payment Methods

China
Follow
Supplier
Company Profile：
No Information
Main products：
No Information
Yueqing Kane Electric Co., Ltd. Enter the Store

Recommended products

More

  • SSR Relay 4-20mA SSR-25la SCR-La Single Phase Linear Solid State Module (SCR)

    US  $ 5.00

  • T-18h Correct Edge Photo Switch Sensor Infrared Photoelectric Sensor

    US  $ 10.00

  • SSR-40da Single Phase DC to AC Solid State Module SSR Relay

    US  $ 4.00

  • 60~150A Industrial Class Single Phase SSR Solid State Module Relay

    US  $ 20.00

  • Ah2-Y Time Relay Time Delay Relay Time Counter Relay IC Timer

    US  $ 5.00

  • 10A DC-AC Single Phase Solid State Relay Solid State Module SSR

    US  $ 2.40

  • St3p Electronic Time Relay Multi Range Timer Power on Time Delay Relay with Base Socket

    US  $ 4.00

  • 40A AC to AC DIN Rail Mount Slim SSR Relay Solid State Relay

    US  $ 18.00

Commodity Details
  • Model NO. SYTH2548ZA2
  • Electricity Type Ac
  • Number of Pole 3
  • Load Weak Power Relay
  • Protective Characteristics Sealed Relay
  • Action Principle Electronic Type
  • Size Miniature
  • Type Electric Parameter Relay
  • Load Voltage 24-480VAC
  • Control Voltage 70-280VAC
  • Certificates ISO,CE,RoHS
  • Transport Package Color Box + Carton
  • Specification 25A
  • Trademark TRIHERO
  • Origin China
  • HS Code 85364900
  • Production Capacity 30000PCS/Month
3 phases AC to AC Solid State Relay(SSR)

Features:
* Dielectric strength up to 4000V
* Photo isolation
* Zero cross or random turn-on
* Panel mount
* AC control
* Built-in RC
* LED indicator
* Load current 10~120A

Specification(Rated current corresponding to Resistive load):
ModelSYTH2548ZA2
Load current25A
Load voltage480VAC
Control voltage70-280VAC
Control currentAC 12mA
On state voltage drop≤1.8VAC
On state leakage current≤10mA
Off state time≤10mS
Dielectric strength2500VAC
Insulation resistance1000MΩ500VDC
Ambient temperature-30°c ~ 75°c
Mounting methodbolting
IndicatorLED
Weight380g

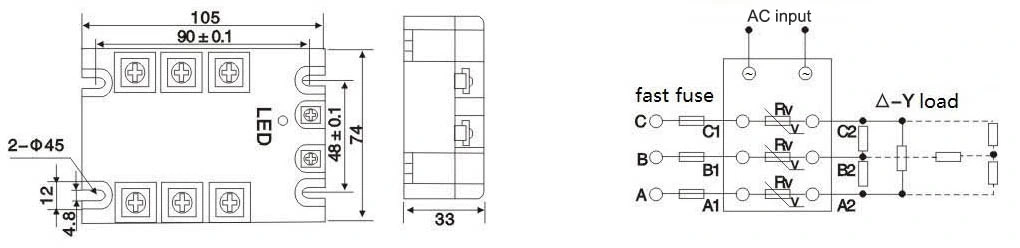

Dimension & Wiring:
SSR3-25AA AC to AC 3 Phase SSR Relay

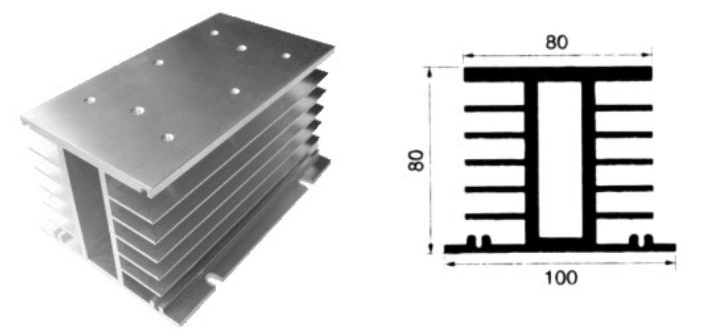

Matched heatsink:
H-150
SSR3-25AA AC to AC 3 Phase SSR RelaySSR3-25AA AC to AC 3 Phase SSR Relay



3 phases AC to AC Solid State Relay(SSR)

Features:
* Dielectric strength up to 4000V
* Photo isolation
* Zero cross or random turn-on
* Panel mount
* AC control
* Built-in RC
* LED indicator
* Load current 10~120A

Specification(Rated current corresponding to Resistive load):
ModelSYTH2548ZA2
Load current25A
Load voltage480VAC
Control voltage70-280VAC
Control currentAC 12mA
On state voltage drop≤1.8VAC
On state leakage current≤10mA
Off state time≤10mS
Dielectric strength2500VAC
Insulation resistance1000MΩ500VDC
Ambient temperature-30°c ~ 75°c
Mounting methodbolting
IndicatorLED
Weight380g

Dimension & Wiring:
SSR3-25AA AC to AC 3 Phase SSR Relay
Matched heatsink:
H-150
SSR3-25AA AC to AC 3 Phase SSR RelaySSR3-25AA AC to AC 3 Phase SSR Relay



Commodity Details
3 phases AC to AC Solid State Relay(SSR)

Features:
* Dielectric strength up to 4000V
* Photo isolation
* Zero cross or random turn-on
* Panel mount
* AC control
* Built-in RC
* LED indicator
* Load current 10~120A

Specification(Rated current corresponding to Resistive load):
ModelSYTH2548ZA2
Load current25A
Load voltage480VAC
Control voltage70-280VAC
Control currentAC 12mA
On state voltage drop≤1.8VAC
On state leakage current≤10mA
Off state time≤10mS
Dielectric strength2500VAC
Insulation resistance1000MΩ500VDC
Ambient temperature-30°c ~ 75°c
Mounting methodbolting
IndicatorLED
Weight380g

Dimension & Wiring:
SSR3-25AA AC to AC 3 Phase SSR Relay
Matched heatsink:
H-150
SSR3-25AA AC to AC 3 Phase SSR RelaySSR3-25AA AC to AC 3 Phase SSR Relay
