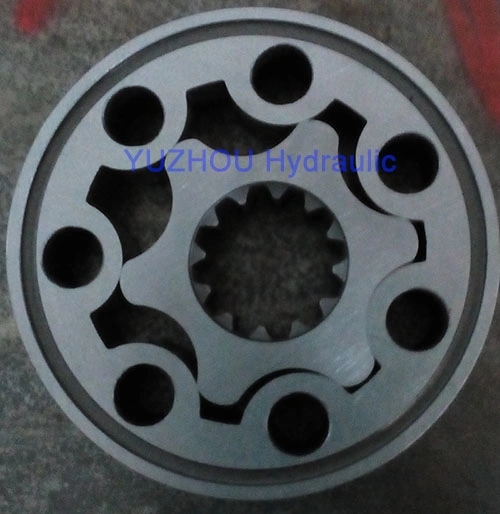

  • Gerotor, Geroler Motors, Geroler Steering Units

    US  $ 15.00

  • Cushion Valve, Vaa-B-Sicn-St-Vf-150, Rexroth R93000693

    US  $ 250.00

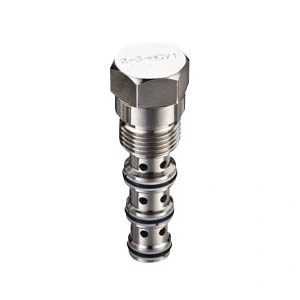

  • Cartridge Valve, Hydraulic Directional Valve, Directional Control Valve

    US  $ 50.00

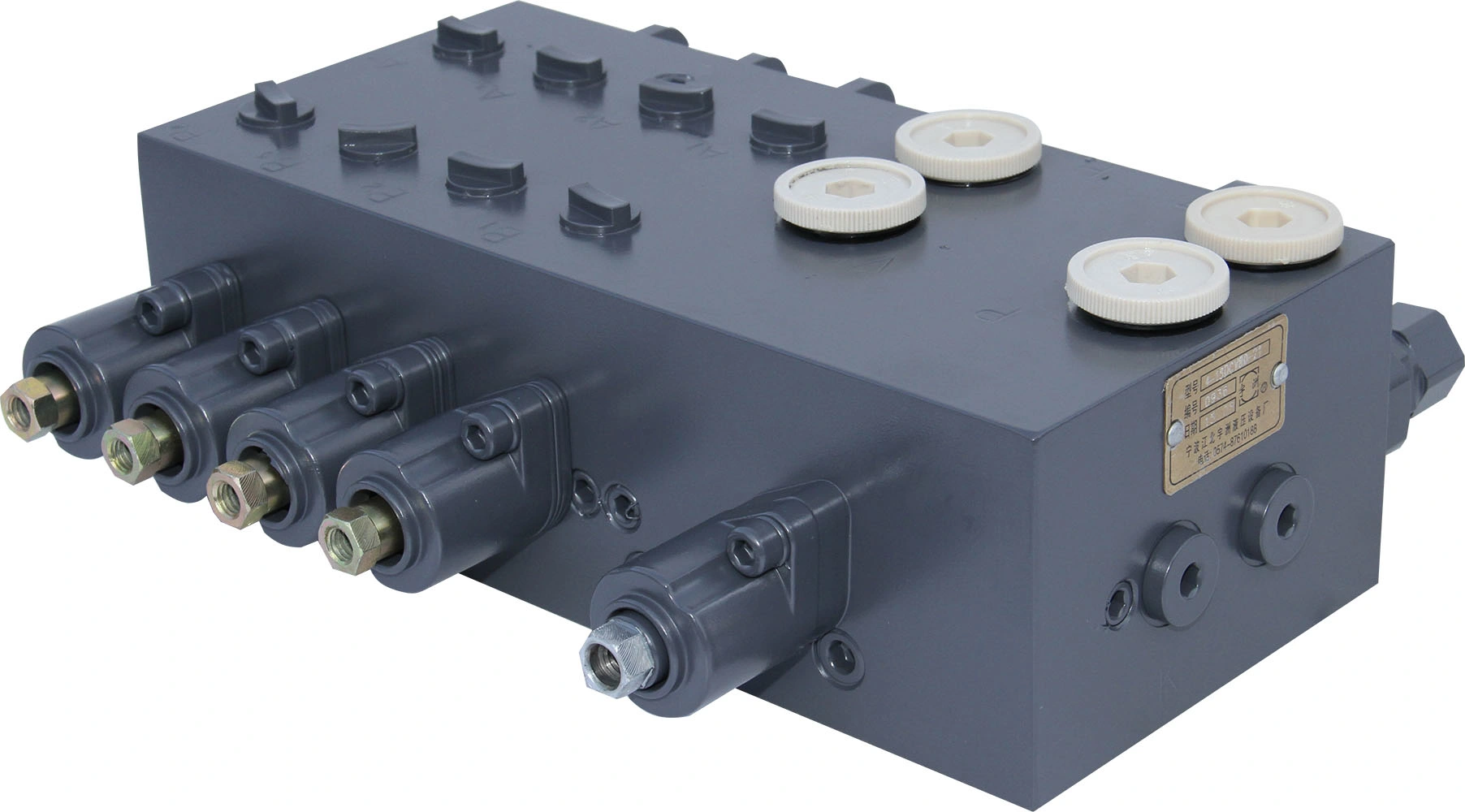

  • Outriggers Control Valve, Monoblock Valve, Truck Mounted Crane Valve

    US  $ 200.00

  • Hydraulic Bi-Directional Relief Valve, Relief Valve, Hydraulic Relief Valve

    US  $ 50.00

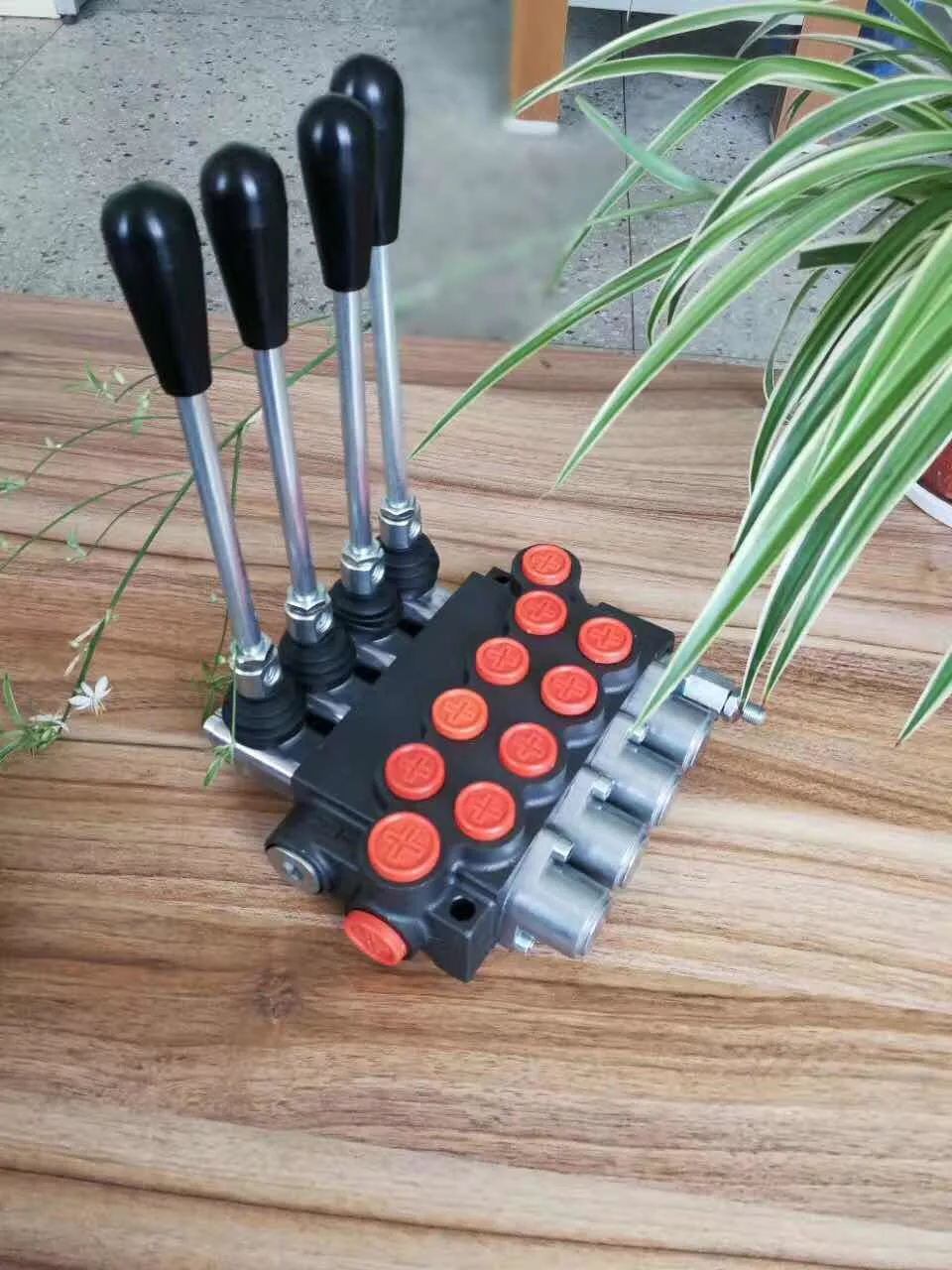

  • Monoblock Valve, Hydraulic Directional Valve, Hydraulic Control Valve

    US  $ 30.00

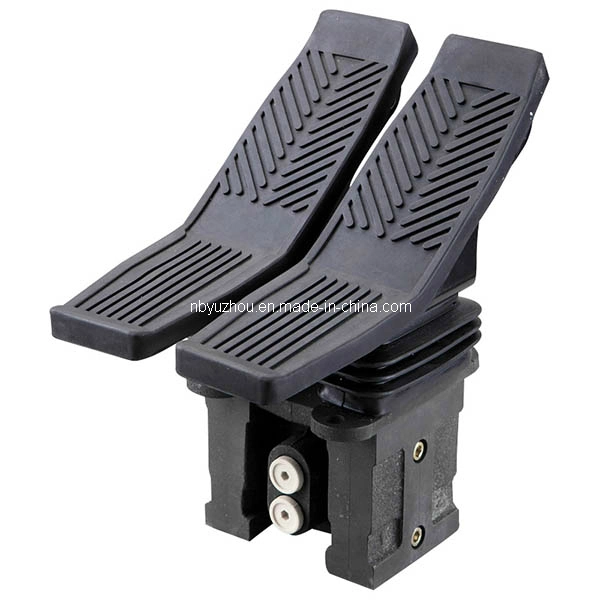

  • Hydraulic Pilot Control Valves for Foot Control Valve

    US  $ 300.00

  • Hydraulic Check Valve, One Way Valve CV1

    US  $ 50.00

Commodity Details
  • Model NO. CCBH Hydraulic balance valve screw connection
  • Origin China
  • HS Code 8481804090
  • Production Capacity 10000/Month
CCBH Series Balance Valve

Application

This product is mainly used for an oil cylinder circuit with a large area ratio of rodless cavity and rod cavity (ratio of reverse flow and forward direction flow), such as the circuit of stretching & withdrawing and variation amplitude oil cylinder on a hydraulic mobile crane.


Functions and features

1. It can automatically induce negative moment to limit the movement speed of negative moment and prevent speed out of control and suction of oil pump and system.

2. The inside is installed with a check valve for hydraulic locking. It can reliably avoid the fall of external load when the operating valve is at neutral position.

3. This valve can be inserted into the oil cylinder with a pipe or by itself to prevent the fall of oil cylinder to the hose damage.

4. It can provide valve bodies that meet the different requirements on installation size of users.

5. It can offer products of different flow specifications when the overall dimension of the complete valve spool is ensured invariant.

Basic parameters

1. Drift diameter DN=20;

2. Rated working pressure PH=25MPa;

3. Max. reverse flow Qmax=350L/min;

4. Control pressure 5-8MPa.

5, Forward rated flow: Q=140L/min;

6 Min. backward flow: Qmin=100L/min;

7, Ideal working temperature: +40 ~+70 degree C;

8, Highest working temperature: +90 degree C;

9, Lowest/highest environment temperature: -20~+60 degree C.
10, Equal or less than 50um.

How to order?

CCBH screw connection dimensions

CCBH symbols
CCBH Series Balance Valve

Application

This product is mainly used for an oil cylinder circuit with a large area ratio of rodless cavity and rod cavity (ratio of reverse flow and forward direction flow), such as the circuit of stretching & withdrawing and variation amplitude oil cylinder on a hydraulic mobile crane.


Functions and features

1. It can automatically induce negative moment to limit the movement speed of negative moment and prevent speed out of control and suction of oil pump and system.

2. The inside is installed with a check valve for hydraulic locking. It can reliably avoid the fall of external load when the operating valve is at neutral position.

3. This valve can be inserted into the oil cylinder with a pipe or by itself to prevent the fall of oil cylinder to the hose damage.

4. It can provide valve bodies that meet the different requirements on installation size of users.

5. It can offer products of different flow specifications when the overall dimension of the complete valve spool is ensured invariant.

Basic parameters

1. Drift diameter DN=20;

2. Rated working pressure PH=25MPa;

3. Max. reverse flow Qmax=350L/min;

4. Control pressure 5-8MPa.

5, Forward rated flow: Q=140L/min;

6 Min. backward flow: Qmin=100L/min;

7, Ideal working temperature: +40 ~+70 degree C;

8, Highest working temperature: +90 degree C;

9, Lowest/highest environment temperature: -20~+60 degree C.
10, Equal or less than 50um.

How to order?

CCBH screw connection dimensions

CCBH symbols
