Dh48s-S Time Delay Relay 0.1s-99 Hour, Digital Twin Timer
Introduction:
DH48S digital timer adopted the advanced large-scale special equipment integration and LED digital diaplay,it can replace H5CN and similar products with beautiful apperance,wide delay range,high precision,low power consumption,long service life,easy to operate,large contact capacity and other advantages, used in control components in automatic control system.

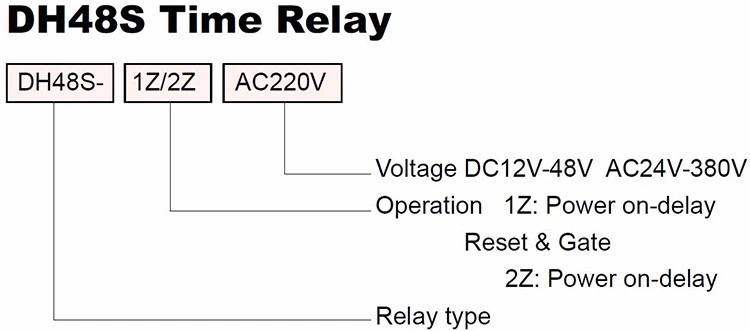

Type description:
DH48S-1Z: One group of delay timer output,with reset and pause function;
DH48S-2Z: Two groups of delay timer output;
DH48S-2ZH: One delay,one instantaneous output.
| Specification |
| Voltage | DC:12V,24V, AC:110V,220V,380V |
| Power | 85~110% rated voltage |
| Delay accuracy | ≥0.3%±0.05S |
| Contact capacity | AC220V 5A, DC30V 5A(resistive) |
| Mechanical life | ≥107 |
| Electrical life | ≥105 |
| Ambient temperature | -10ºC~+50ºC |
| Power consumption | ≤5W |
| Altitude | <2000m |
| Time range |
| 0.01~99.99S |
| 0.01~99.99M |
| 0.01~99.99H |
| Switch position | Delay range |
| h | 1min~99h99min |
| m | 1s~99min99s |
| s | 0.01s~99.99s |
| Switch position | Delay range |
| m s | 1s~99min99s |
| h m | 1min~99h99min |
| 0.01s | 0.01s~99.99s |
| 0.1s | 0.1~999.9s |
| s | 1s~9999s |
| m | 1min~9999min |
| 10s | 10s~99990s |
| 0.1m | 0.1min~999.9min |
| 0.1h | 1min~999.9h |
| h | 1h~9999h |

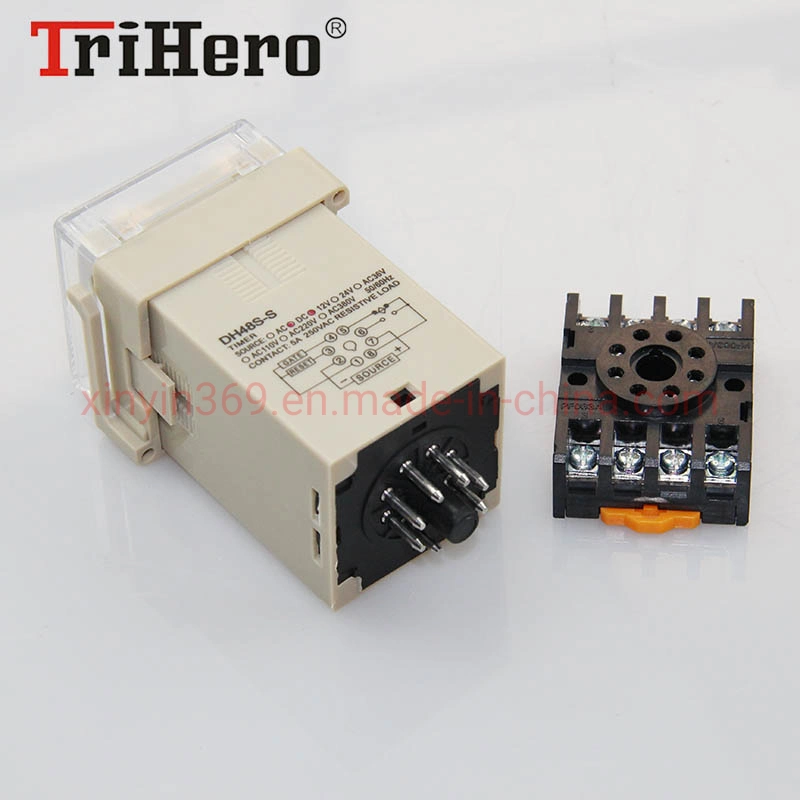

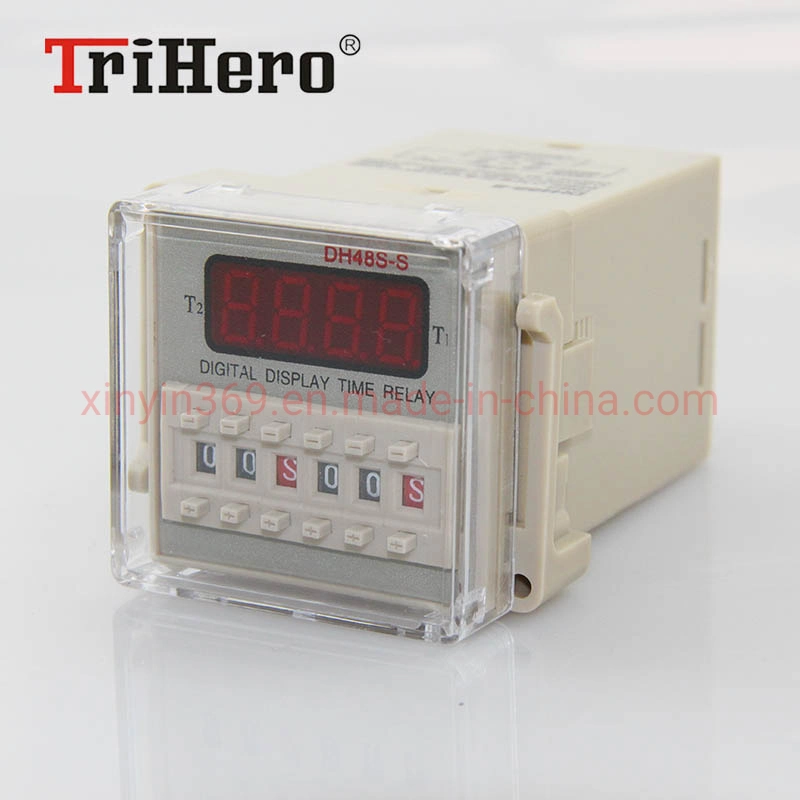

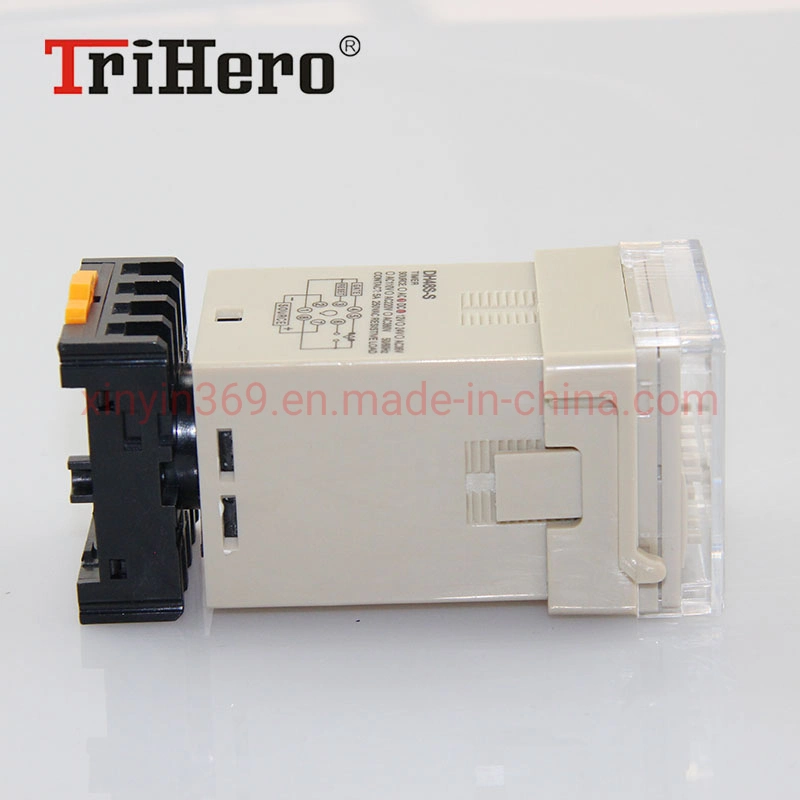

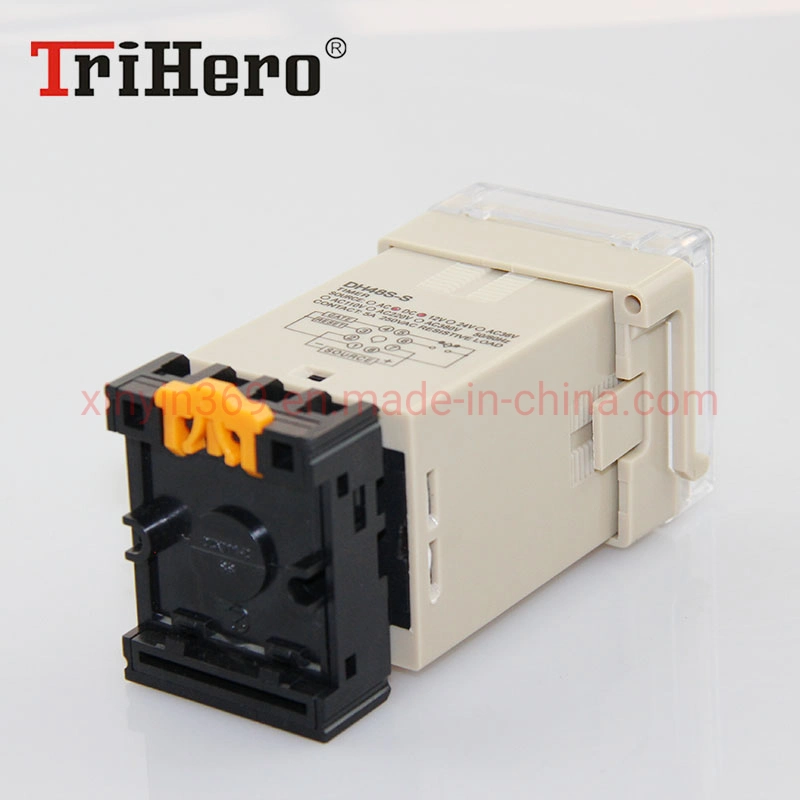

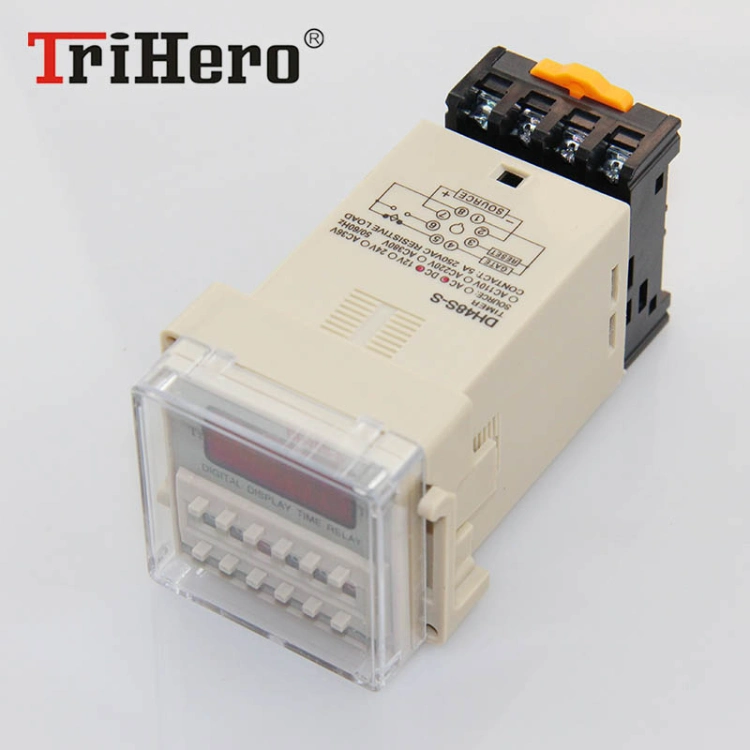

Product display:
FAQ
Q1. What advantages do you have?
A1. Trihero are the direct Manufacturer in Yueqing City, we have professional
developing, marketing & production team to offer you the most competitive price and best service.
Q2. What's your main product?
A2. Low voltage electrical and automation control items.
Q3. Could you print our own logo?
A3. Yes, our company are available for Retail & Wholesale & OEM & ODM.
Q4. How long is the quality guarantee?
A4. 18 months warranty, all products are 100% tested before leaving factory.
Q5. How long is the deliver time?
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q6. What is your payment terms?
A6. Support T/T, Western Union, PayPal, L/C at sight.
Q7. Any certification of your company or product?
A7.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, SGS,HALAL,etc.
