25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base

US $14.00

/Piece

This is a standard product, you can order directly

25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base

Price

US  $14.00 /Piece

Quantity
- +

Save

Inquiry Now Order Now
Payment Methods

China
Follow
Supplier
Company Profile：
No Information
Main products：
No Information
Yueqing Kane Electric Co., Ltd. Enter the Store

Recommended products

More

  • SSR Relay 4-20mA SSR-25la SCR-La Single Phase Linear Solid State Module (SCR)

    US  $ 5.00

  • T-18h Correct Edge Photo Switch Sensor Infrared Photoelectric Sensor

    US  $ 10.00

  • SSR-40da Single Phase DC to AC Solid State Module SSR Relay

    US  $ 4.00

  • 60~150A Industrial Class Single Phase SSR Solid State Module Relay

    US  $ 20.00

  • Ah2-Y Time Relay Time Delay Relay Time Counter Relay IC Timer

    US  $ 5.00

  • 10A DC-AC Single Phase Solid State Relay Solid State Module SSR

    US  $ 2.40

  • St3p Electronic Time Relay Multi Range Timer Power on Time Delay Relay with Base Socket

    US  $ 4.00

  • 40A AC to AC DIN Rail Mount Slim SSR Relay Solid State Relay

    US  $ 18.00

Commodity Details
  • Model NO. SYDR2548ZD3
  • Electricity Type Ac
  • Number of Pole 1
  • Protective Characteristics Sealed Relay
  • Action Principle Electronic Type
  • Size Miniature
  • Type Electric Parameter Relay
  • Input 4-32VDC
  • Load Voltage 480VAC
  • Certificates CE, RoHS
  • Transport Package 1PCS/Box
  • Specification 25A
  • Trademark TRIHERO/OEM
  • Origin Zhejiang
  • HS Code 8536490000
  • Production Capacity 30000PCS/Month
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base


Patent number for slim SSR relay: 201830067878.6

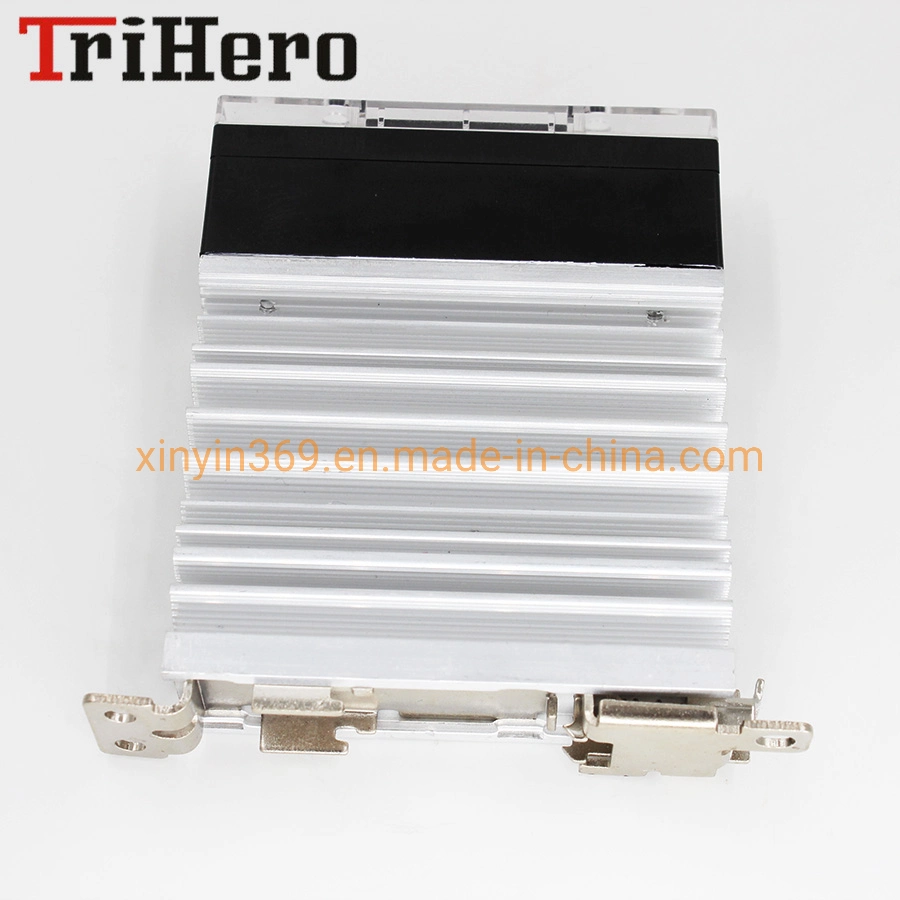

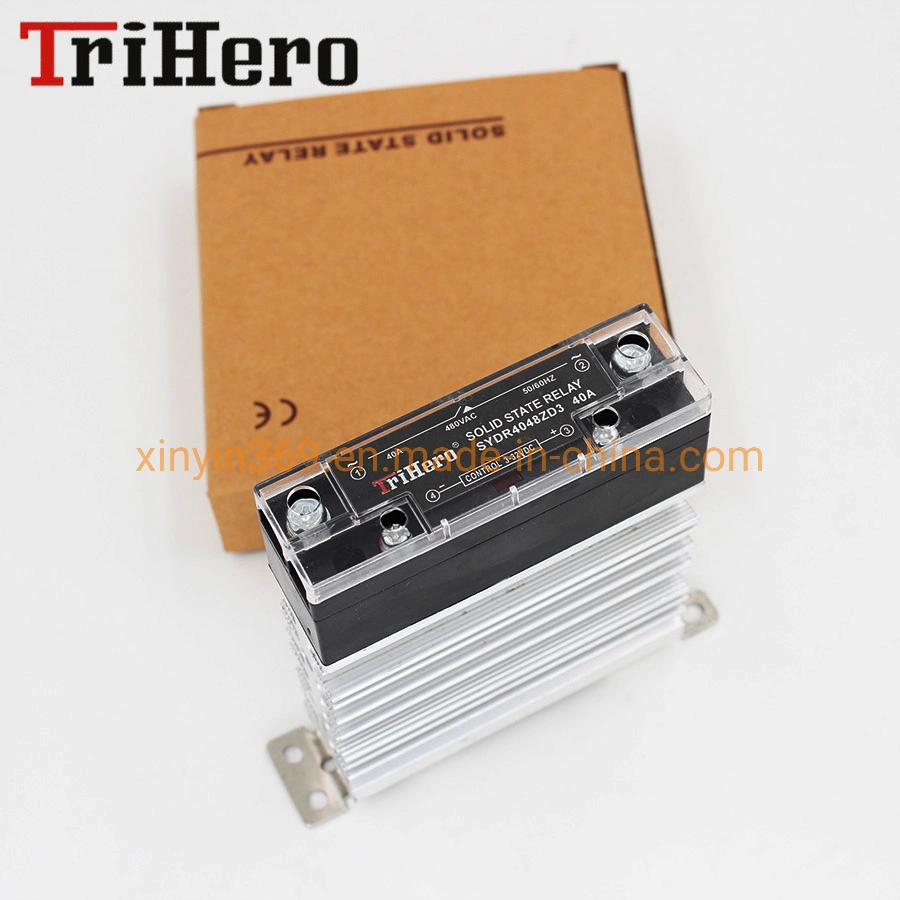

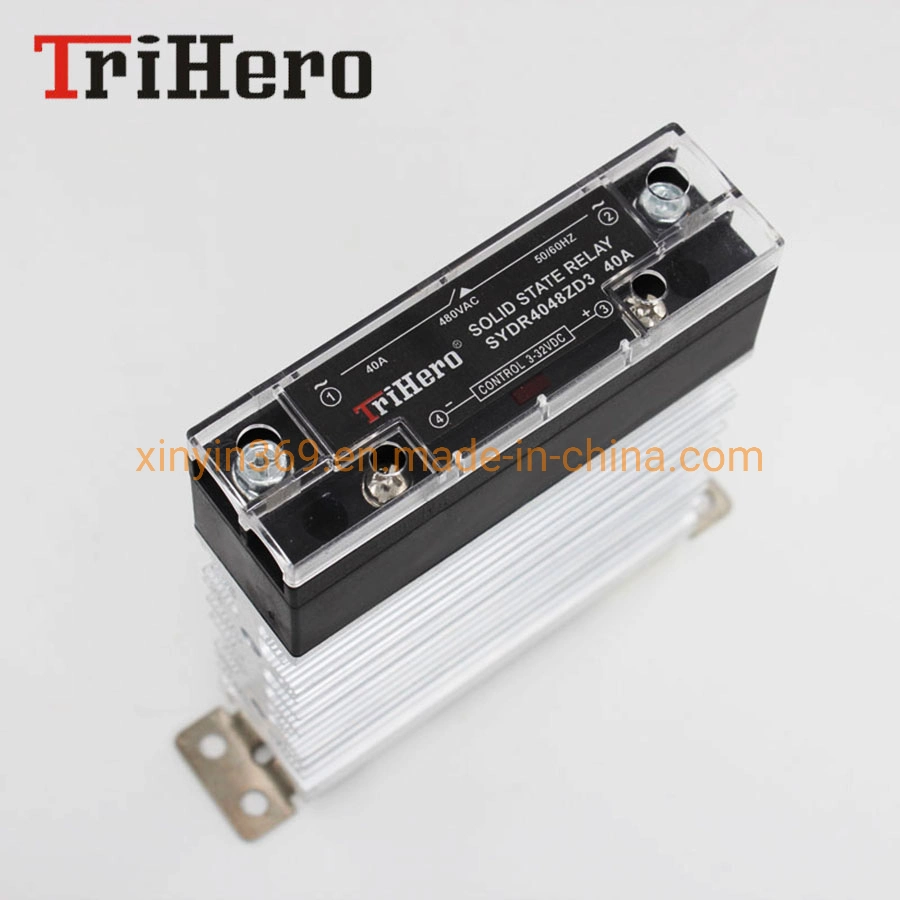

25A DIN rail mounted slim solid state relay SSR with heatsink


Features:
1. Load current10~40A
2. Built-in RC
3. With LED indicator
4. Dielectric strength upto 4000V
5. Zero-cross or random turn-on
6. DC control

Technical data:

Load current25A
Load voltage24-480Vac
Input voltage3-32VDC
Voltage drop ≤1.5V
Leakage current ≤2mA
ON-OFF time ≤10mS
Dielectric strength 2500Vac
Insulation resistance 1000MΩ 500VDC
Ambient temperature -30°c ~ +75°c
Dimension(mm) 80.3x24.3x104
Weight 300g

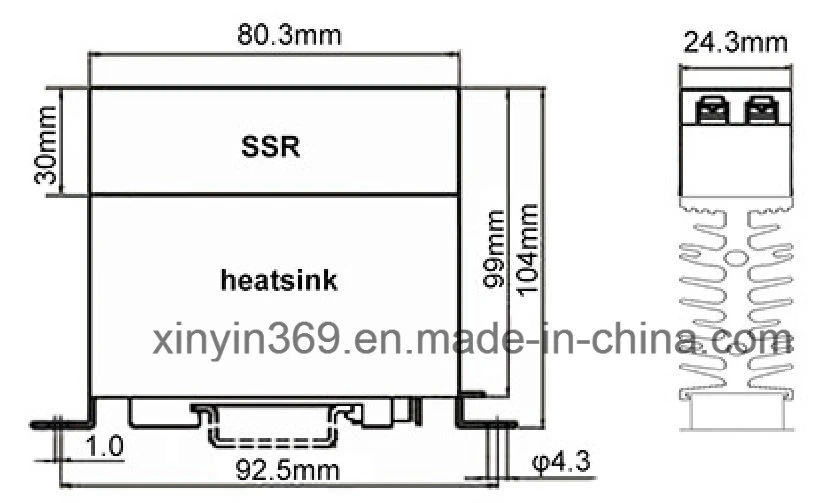

Outline dimensions:
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base

25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base


Patent number for slim SSR relay: 201830067878.6

25A DIN rail mounted slim solid state relay SSR with heatsink


Features:
1. Load current10~40A
2. Built-in RC
3. With LED indicator
4. Dielectric strength upto 4000V
5. Zero-cross or random turn-on
6. DC control

Technical data:

Load current25A
Load voltage24-480Vac
Input voltage3-32VDC
Voltage drop ≤1.5V
Leakage current ≤2mA
ON-OFF time ≤10mS
Dielectric strength 2500Vac
Insulation resistance 1000MΩ 500VDC
Ambient temperature -30°c ~ +75°c
Dimension(mm) 80.3x24.3x104
Weight 300g

Outline dimensions:
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base
25A DC to AC Single Phase DIN Rail Mounted Slim Solid State Relay SSR with Heatsink and DIN Rail Mounting Base
